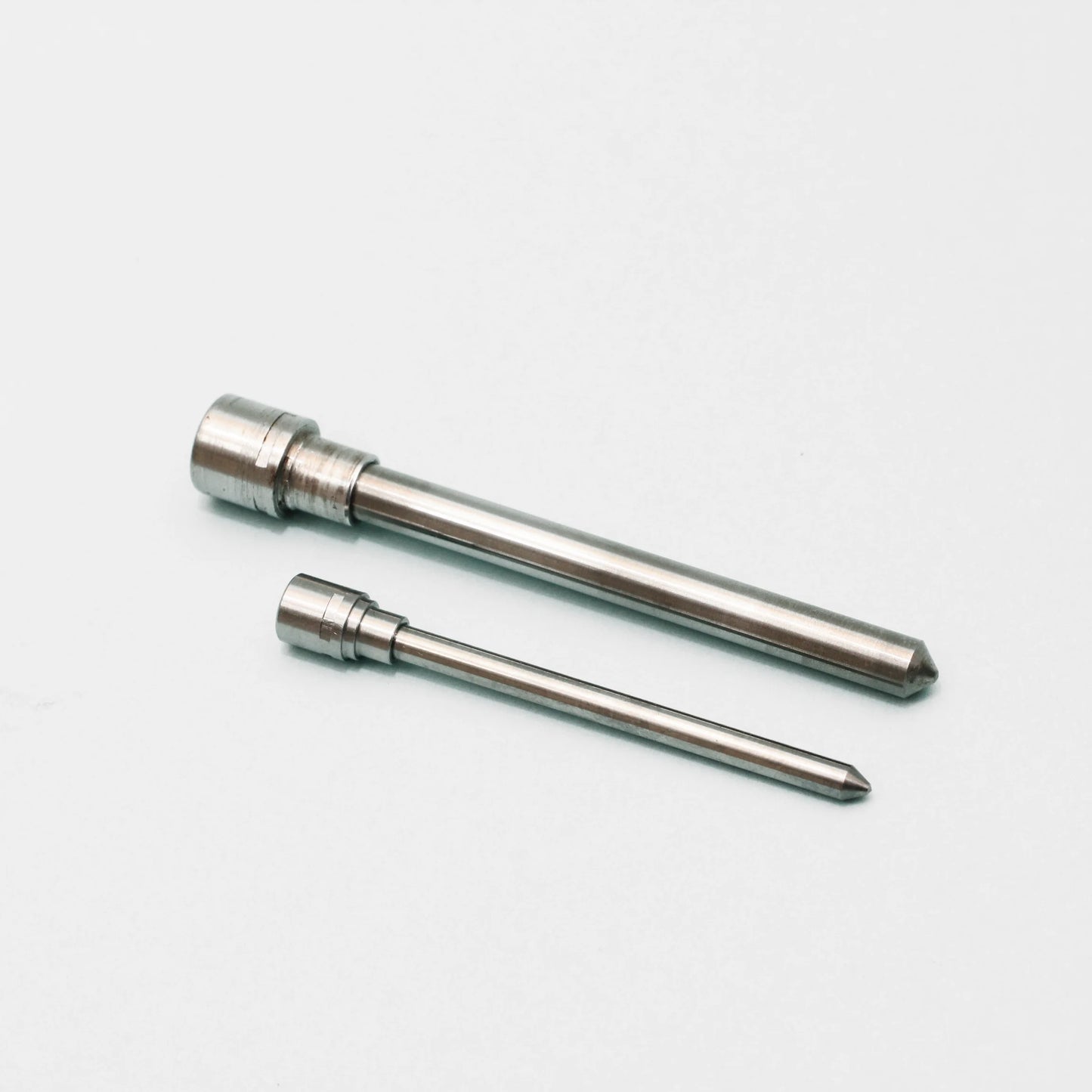

  • Carbide Pin BSD 90 degree tip standard length
  • Carbide pin 90 degree tip diagram
1 3

BSD Carbide Pin - 90° Tip angle, Standard Length

BSD Carbide Pin - 90° Tip angle, Standard Length

BSD14090
  • Carbide stylus pin with a 90° tip angle
  • Standard Length: 67mm
  • Carbide hardness: HRA92
  • Suitable for all metal surfaces up to 62HRC

This tip angle is sharper than standard. Its can be used for marking all metals but is more suitable for softer metals.

The sharper angle helps achieve a deeper mark or finer mark.

About Carbide Pin life: Some of our customers get about 2 years out of a pin whereas other will purchase a new pin yearly. Pin life is dependant on how hard your material is, how hard you are marking and the frequency of use. Companies replacing a pin a year typically mark 350 grade, operating the unit frequently all day.

You can regrind the tip or we can offer that service if you require, just get in touch.
