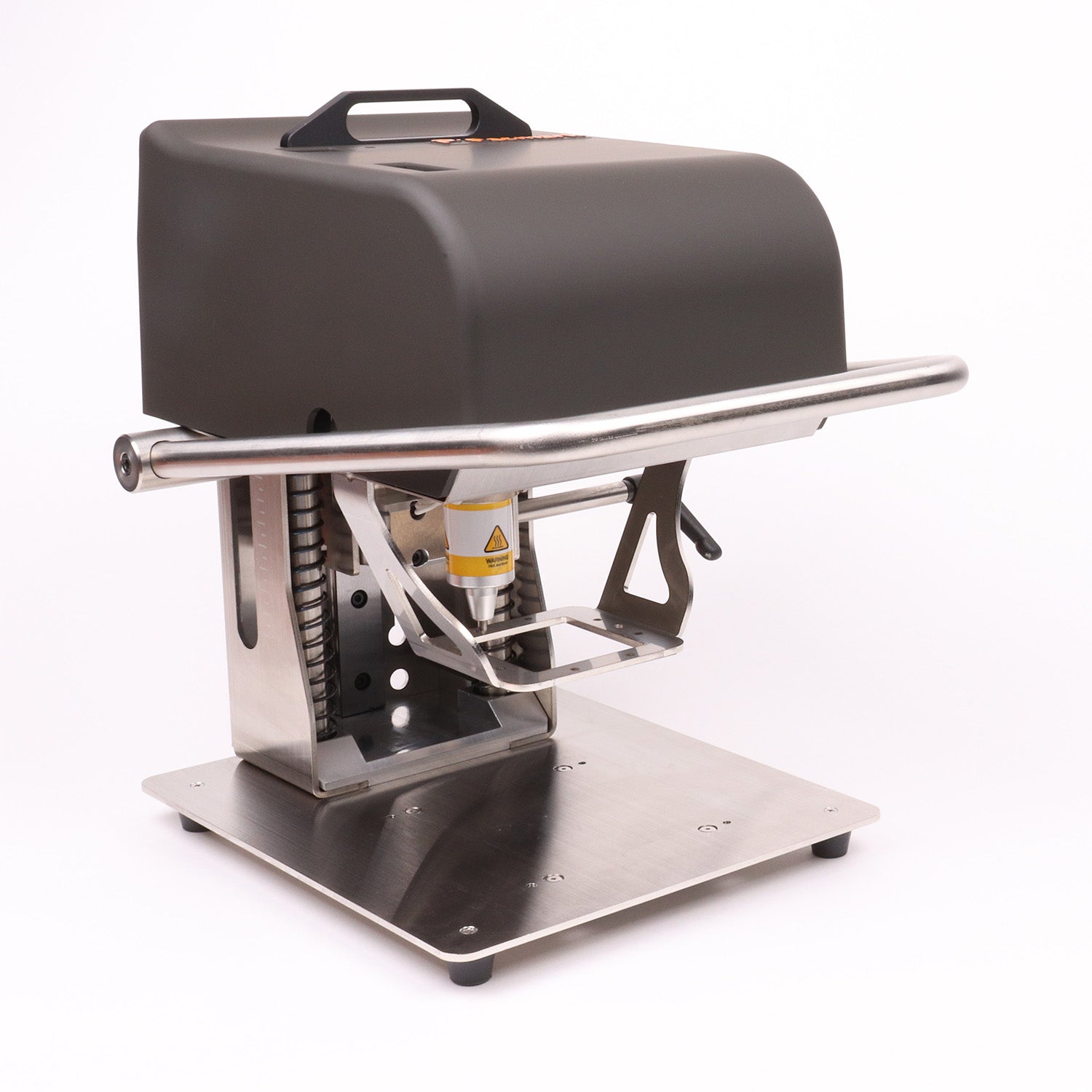

  • Patmark desktop unit up

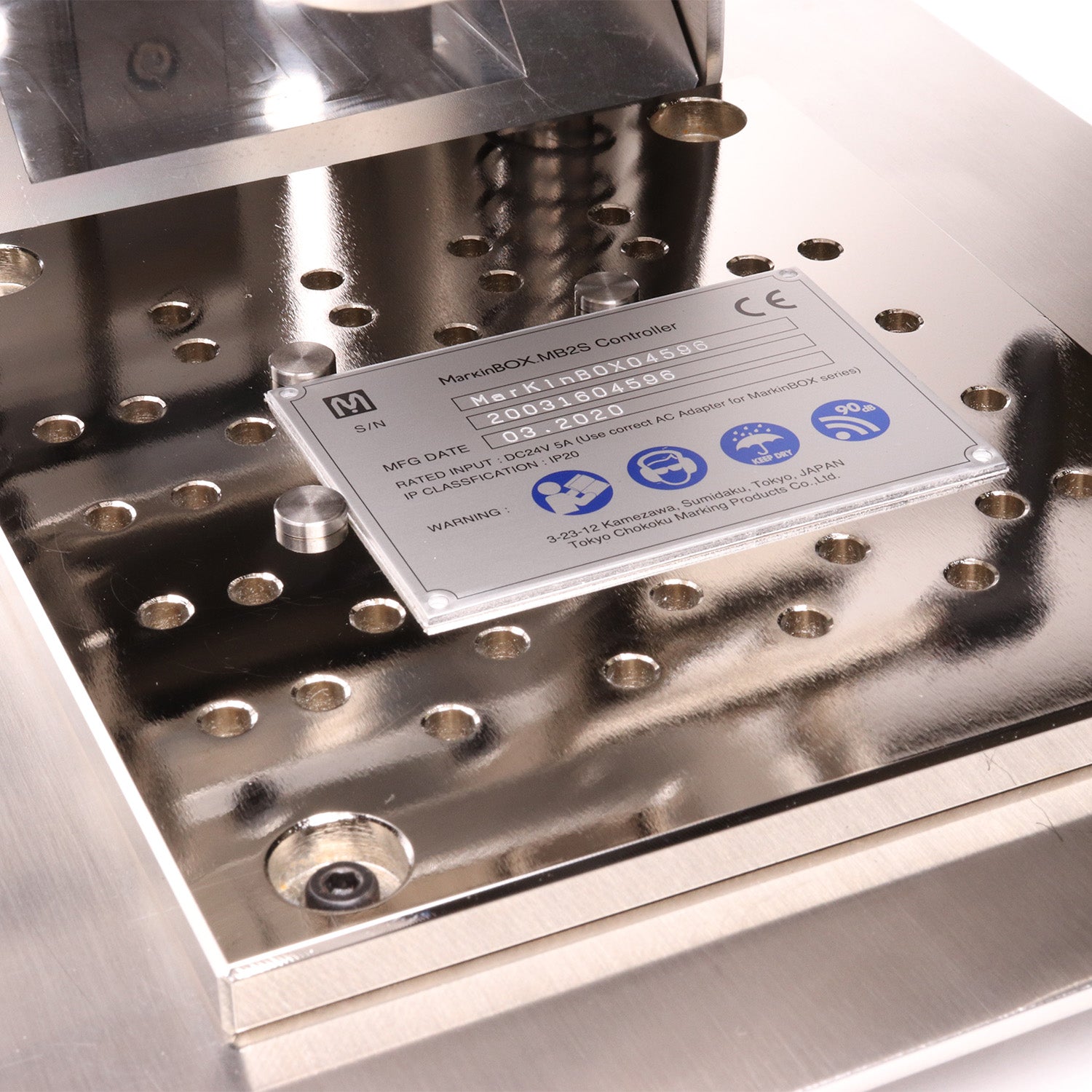

  • Patmark desktop plate marking example

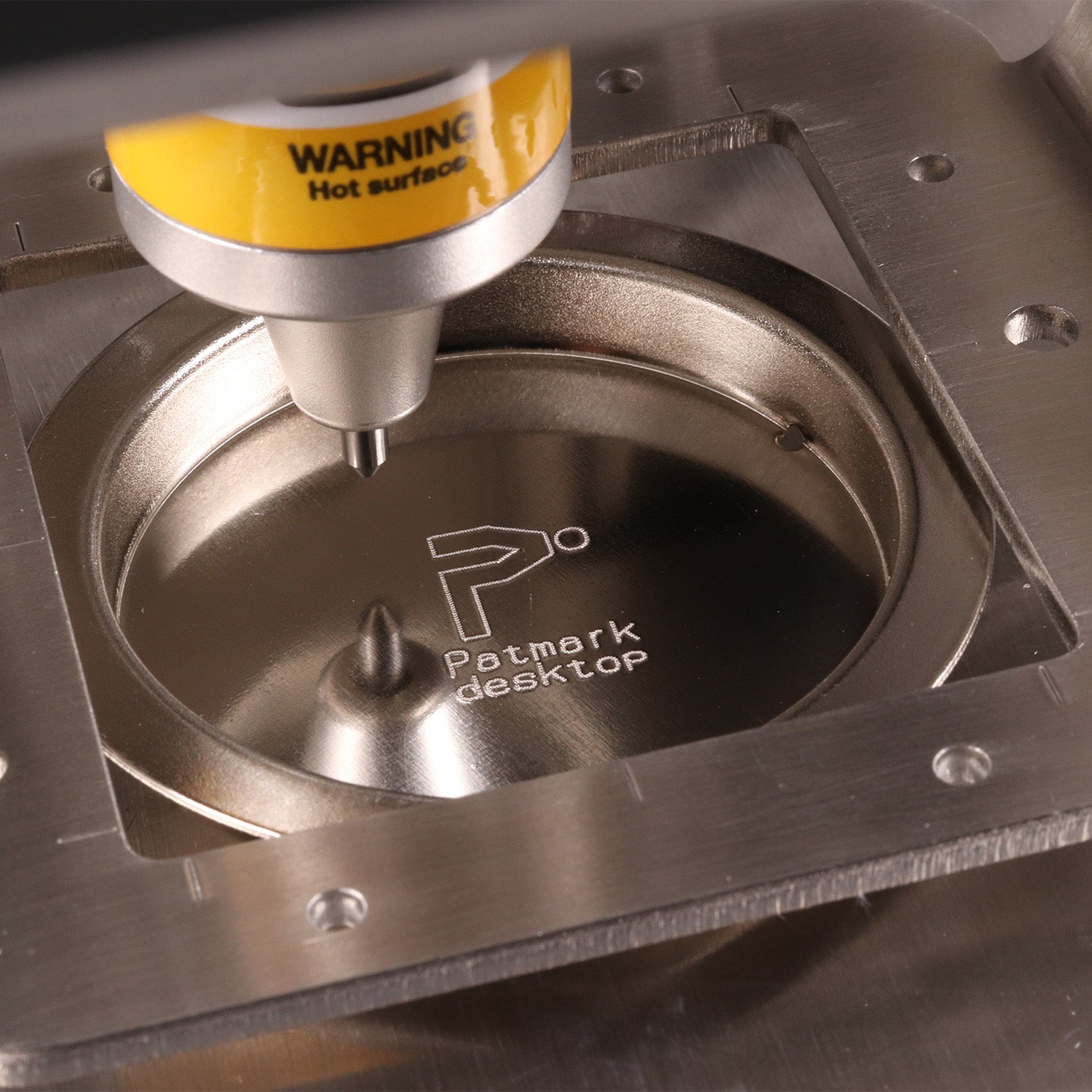

  • Patmark desktop lid recess marking
1 3

Patmark Desktop

Patmark Desktop

PMDESKTOPBK

Marking Area: 50 W x 50 H

cloud_download Downloads

Patmark Full Catalogue Patmark Desktop Brochure

Marking area of X axis 50mm × Y axis 50mm.

The Patmark-desktop is the entry-level benchtop marker. It is optimised for tag and plate marking but is suitable for part marking also.

The height is adjustable up to 100mm with quick tightening levers to secure the unit at the right height.

This is a great option for plate marking applications and will deliver a highly professional look while eliminating the need for handstamps or hand engravers.

Key Benefits:

  • Increase professionalism
  • Saving time
  • Saving errors (operator mistakes)
  • Improving safety

What's Included

  • Patmark Desktop Unit
  • Power cable and USB Cord
  • Guide Plate, with 3x adjustable locating pins
View full details

Patmark Accessories

View all

Patmark Parts

More information

Patmark F.A.Q.

How long do pins last?

For most customer, marking everyday for 1-4 hours, typically 1-2 years of life. Normally the pin only needs a regrind to touch up the tip point.

Does it matter if I run the unit and the pin isn't hitting anyting?

YES! Do not do this! The pin should always be operated where it impacts a work piece. "Free Running" the pin can cause the pin head to break off - its carbide - super strong in compression but brittle to tension.

Mobile App Software

Patmark Mobile App Image
The mobile app is fantastic for programming and operating the Patmark and Patmark Plus units on the go. The app is designed for quickly typing in serial numbers (like sending an SMS text message), rapidly selecting the font size, force and quality and running the job.

For advanced programs you will require the Patmark PC software to set them up, but once set up they can be transferred, stored and retrieved from the Patmark unit itself - from any mobile device with the app.

Getting Started with the App

Download Patmark app from apple app storeDownload app from google play app store

Getting started with PM Win Software is a breeze! Simply follow these simple steps:

  1. Download the Patmark app from either the App Store or Play Store on your mobile device.
  2. Connect to the Patmark's WiFi using the serial number on the unit.
  3. Open the Patmark app and input your information. With these easy steps, you'll be up and running in no time!

Example Programs

App Software Details

Types of text

Alphabet, numbers and various symbols

Standard fonts

PM font

String text marking(marking over window)

Automatic divide function.

Multiple-line marking

Single line only.

Text height

Choose from S, M, and L *1 to 15mm, 0.5mm pitch.

Marking force

Choose from weak, medium, and strong. *Value from 0 and 9 (strong) can be specified in the default setting menu.

Font quality

Choose from low, medium, and high. *Value from 1 and 9 (high) can be specified in the default setting menu.

Files

Storable 255 files into the Patmark memory and storable files into a handheld device



PC Software

Take control of your dot peen marking process with PM Win Software, the ultimate solution for PC-based marking. With its advanced features, you can effortlessly create multiple line markings, incorporate custom logos, generate QR and DM codes, add sequential serialization, and even set an auto calendar for automatic marking. This software also increases the capabilities of your Patmark machine by allowing you to store up to 255 program files that can be easily accessed from your handheld device. Experience a more efficient and streamlined marking process with PM Win Software.

Example Programs

Patmark PC Software - Text
Single Line Alphanumeric Text

Patmark PC Software - multi-line text
Multiline Alphanumeric Text

Patmark PC Software - Logo marking
Custom Logos

Patmark PC Software - QR & data martix codes
QR Code (generated by the software) and Text

Software Details

Types of text

Alphabet, numbers and various symbols

Standard fonts

PM font, 5×7 font

String text marking (marking over window)

Automatic divide function.

Multiple-line marking

Multiple line setting possible up to 30 fields

Text height

Choose from 1mm and 15mm, in 0.1 mm pitch.

Marking force

Enter a value between 0 and 9 (strong).

Font quality

Enter a value between 1 and 9 (high).

Logo marking

BMP and JPG data – browse and trace in Logo Editor

DXF data – auto convert *Only when connecting with a PC"

2D code

QR code (up to 80 alphanumeric characters and symbols)

Data matrix (up to 80 alphanumeric characters and symbols)

Serial numbers

Incrementable from 1 to 9999.

Date marking

Year, month, day, hour, minute, second, Julian date, shift

Files

Storable 255 files into the Patmark memory and storable files into a computer.

Unit Drawing

Pin Distance From Work Piece Table
