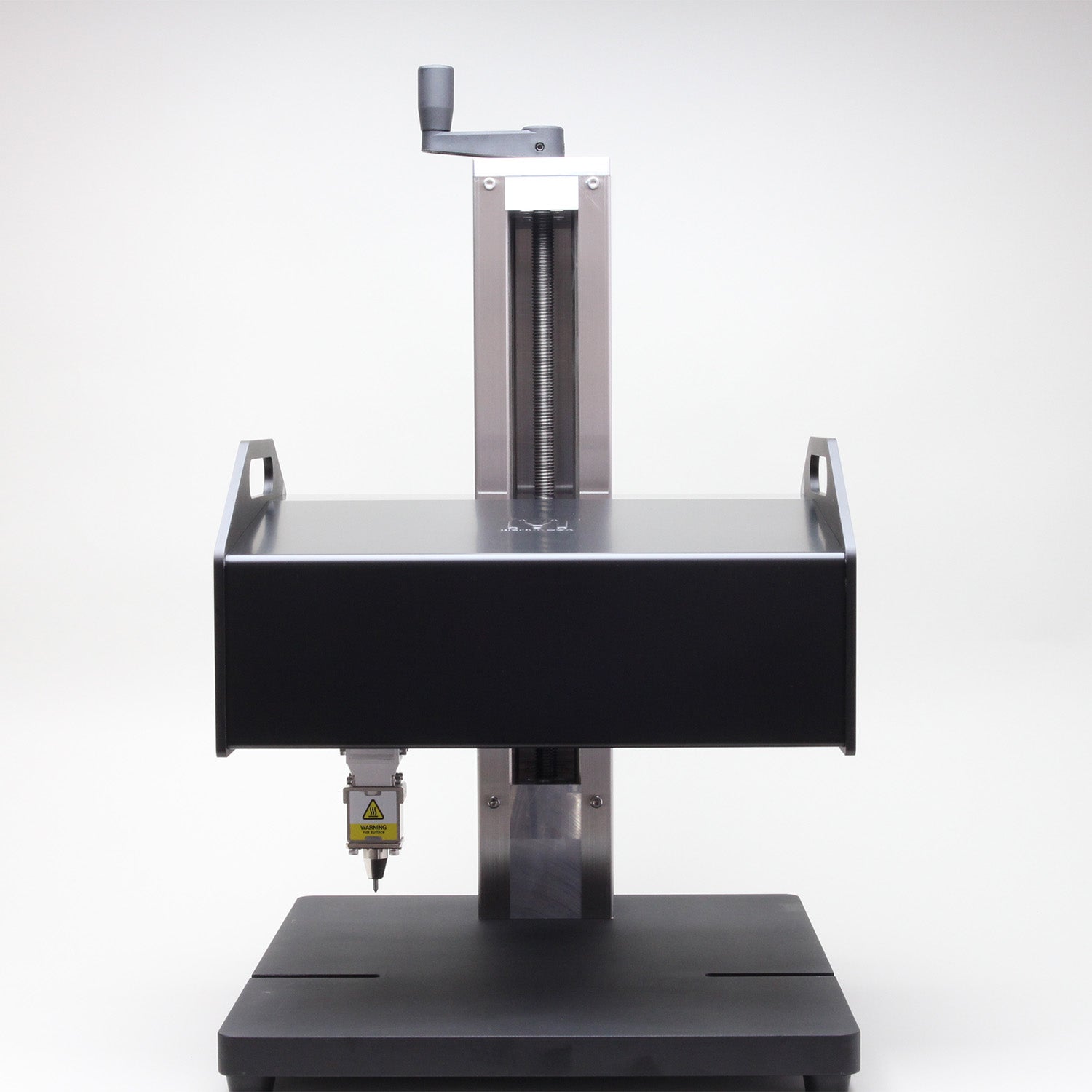

  • Markinbox MB2015 in black

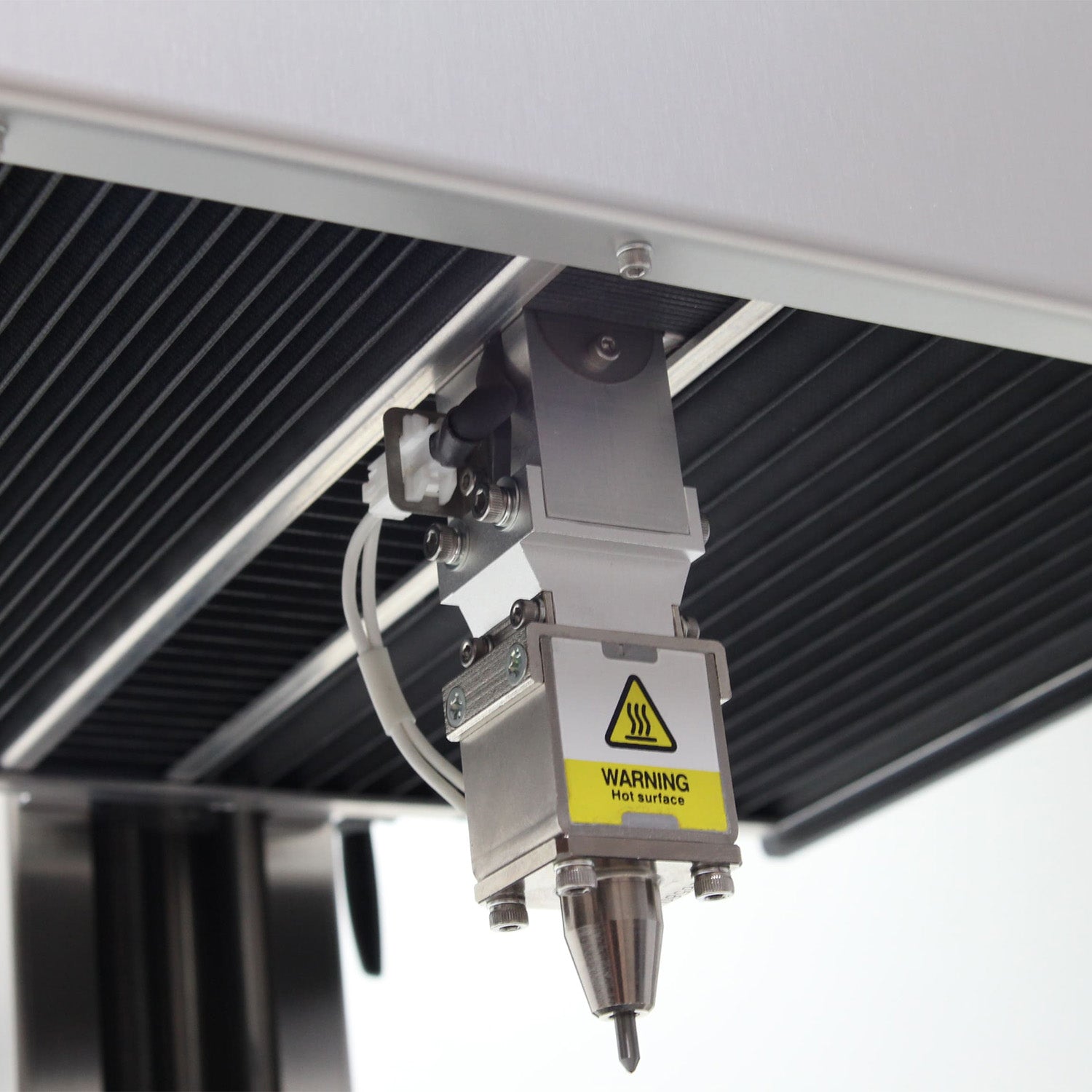

  • Markinbox MB2015 shutter

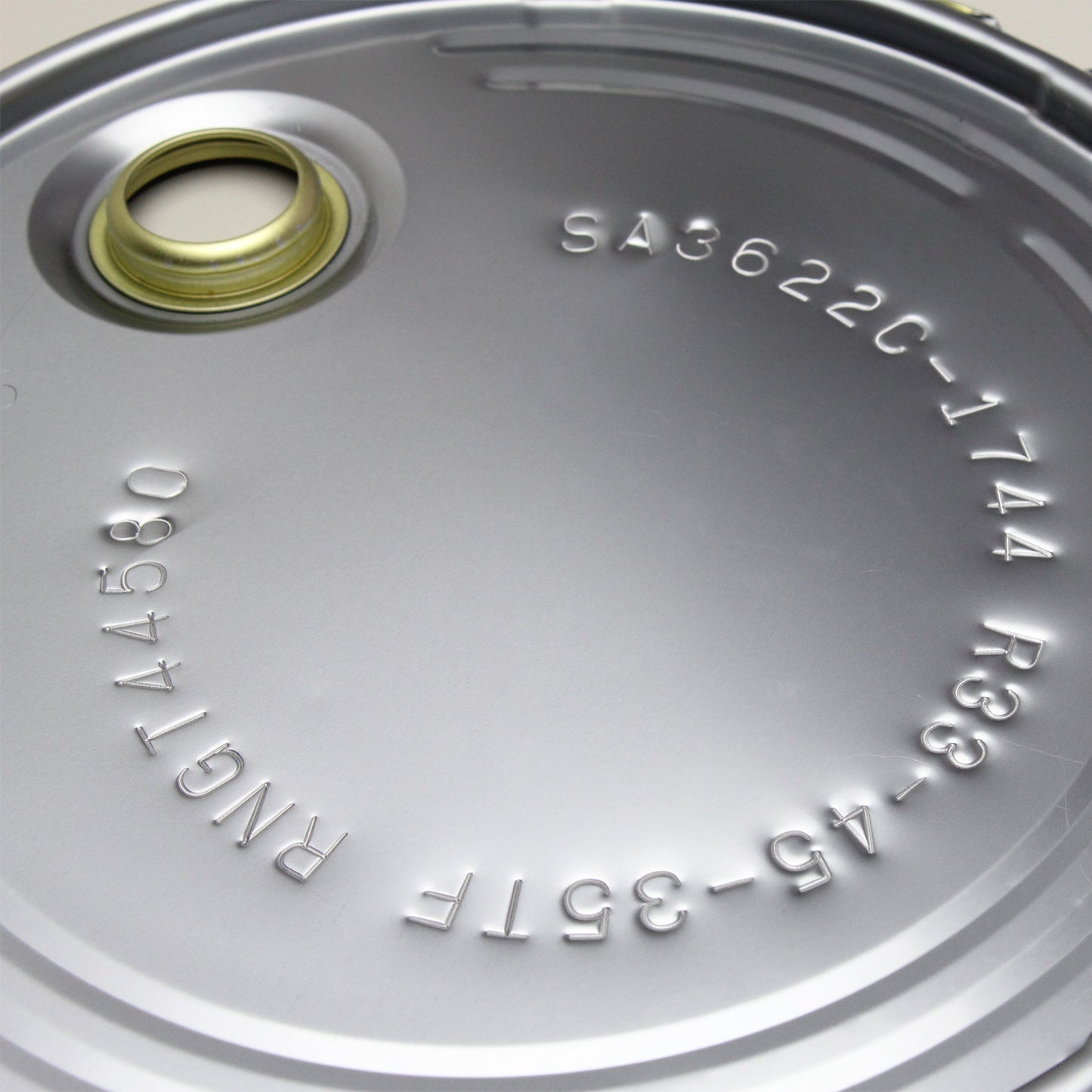

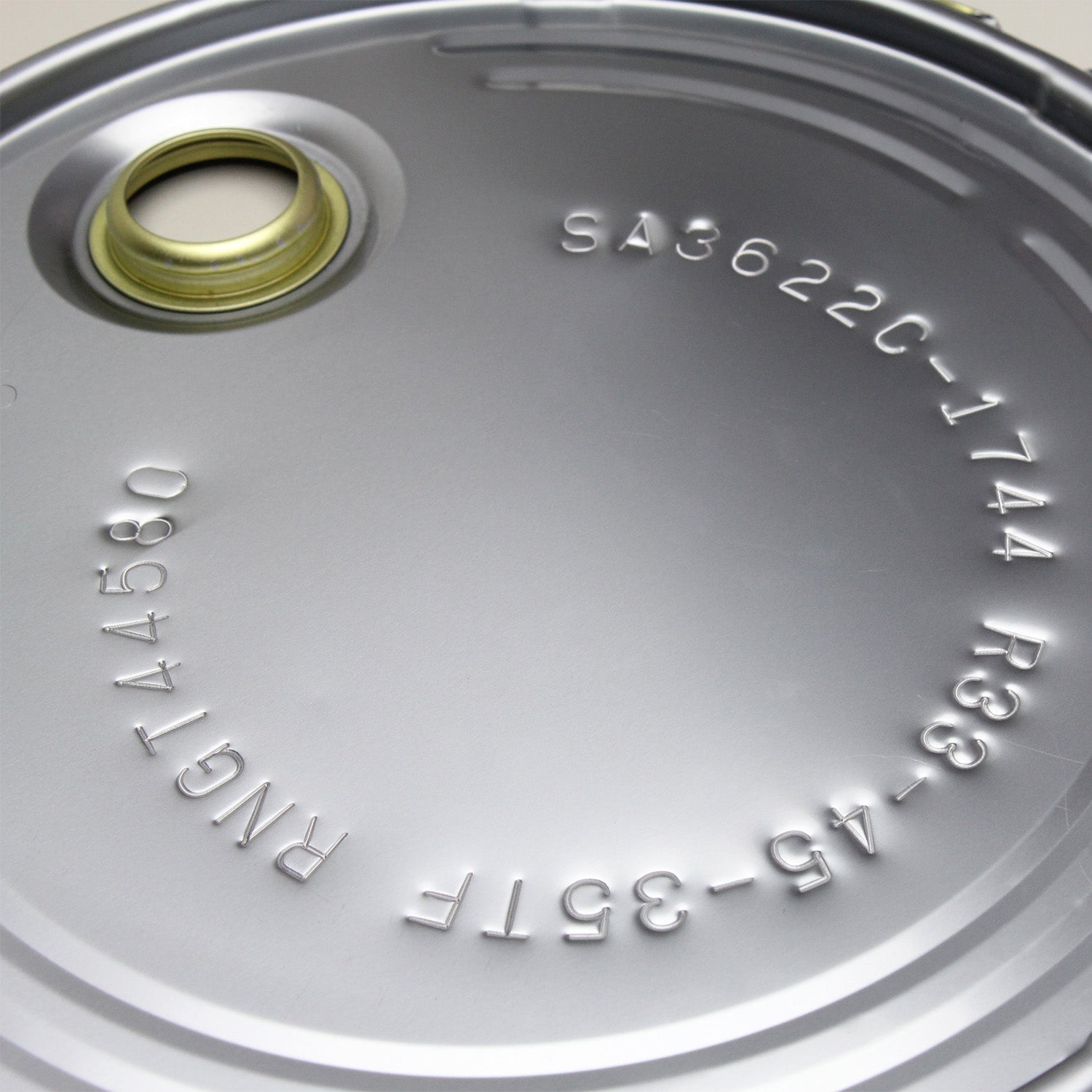

  • Markinbox MB2015 curved text marking example
1 3

MB2015

MB2015

MB2S20152MBK

Marking Area: 200 W x 150 H

cloud_download Downloads

Markinbox Full Catalogue MB2015 Brochure

Specifications

Marking area

X axis 200mm x Y axis 150mm

Standard cable length

2m

Head dimensions

308mm x 269mm x 249mm

Head weight

6.3kg

Tool and post dimensions

310mm x 370mm x 544mm

Tool and post weight

10.7kg

Material application

Metal (HRC62), Plastics, Papers, Woods



Marking area of X axis 200mm × Y axis 150mm.

The MB2015 unit offers the largest marking area of the range. It is ideal for marking tags, plates and part marking.

It comes with a tool post stand. There are two t-slots in the stand base for mounting fixtures and jigs.

The portable foot accessory allows the unit to become portable. We have had customers create their own custom foot for this unit, for special applications, portability and with rare earth magnets for hands-free operation.

Program from PC software (recommended) or mobile device app. See Markinbox Software for more information.

What is in the box:

  • MB2015 Marking Head
  • Normal Solenoid
  • Stand
  • MB2s WiFi controller
  • 2m cable
  • Power cord


View full details

Markinbox Accessories

View all

Markinbox Parts

More Information

Markinbox F.A.Q.

How long do pins last?

For most customer, marking everyday for 1-4 hours, typically 1-2 years of life. Normally the pin only needs a regrind to touch up the tip point.

Does it matter if I run the unit and the pin isn't hitting anyting?

YES! Do not do this! The pin should always be operated where it impacts a work piece. "Free Running" the pin can cause the pin head to break off - its carbide - super strong in compression but brittle to tension.

Software

Easy to use WYSIWYG operation.

Quickly create alphanumeric text, auto-incrementing serial numbers, and date stamps.

Mark DXF files, create logos, mark CSV data and create QR and data matrix codes.



QR and fonts



DXF



Shapes



CSV file marking

Power Source & Connectivity

Power Source: Electric, 240v AC

Just your standard power plug

Diagram:

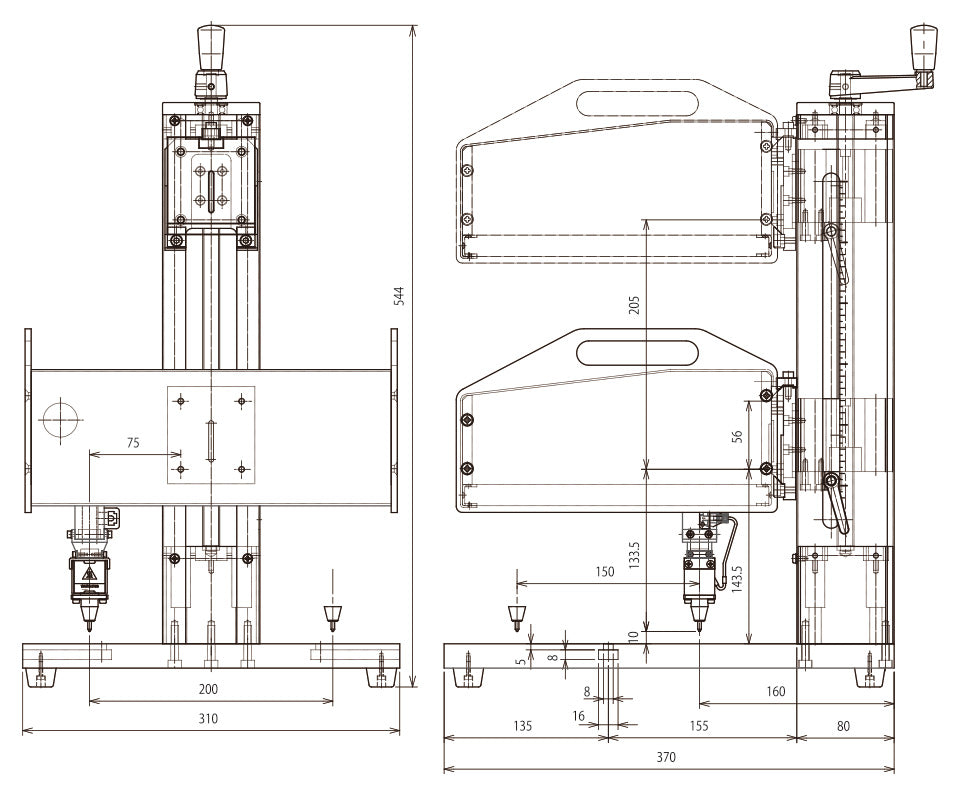

Unit Drawing

Pin Distance From Work Piece Table
