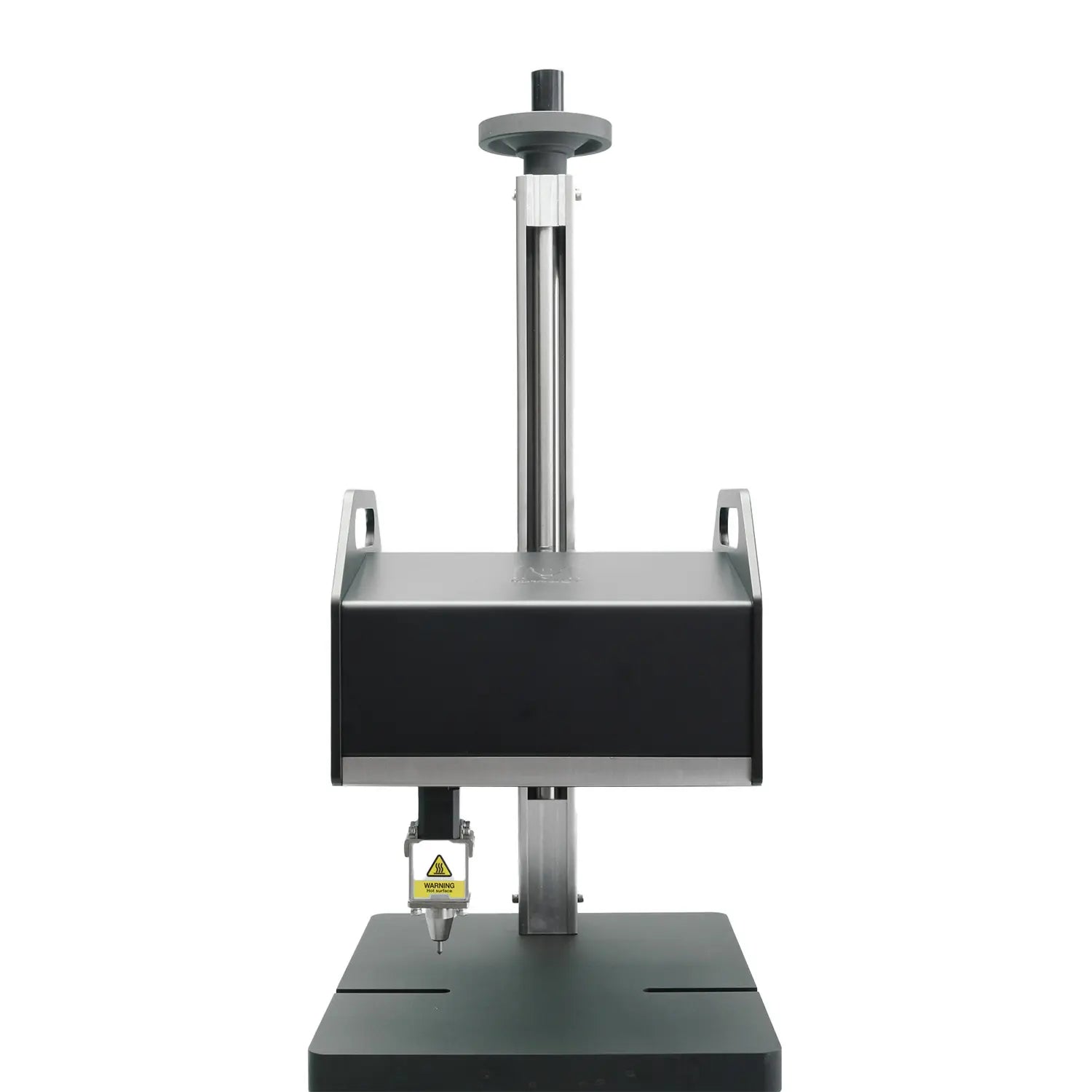

MB1010
MB1010
Translation missing: en.products.product.sku:MB2S10102MBK
Downloads Markinbox Full Catalogue MB1010 Brochure
Specifications
Marking area |
X axis 100mm x Y axis 100mm |
Standard cable length |
2m |
Head dimensions |
200mm x 217.5mm x 228mm |
Head weight |
4.5kg (9.9lbs) |

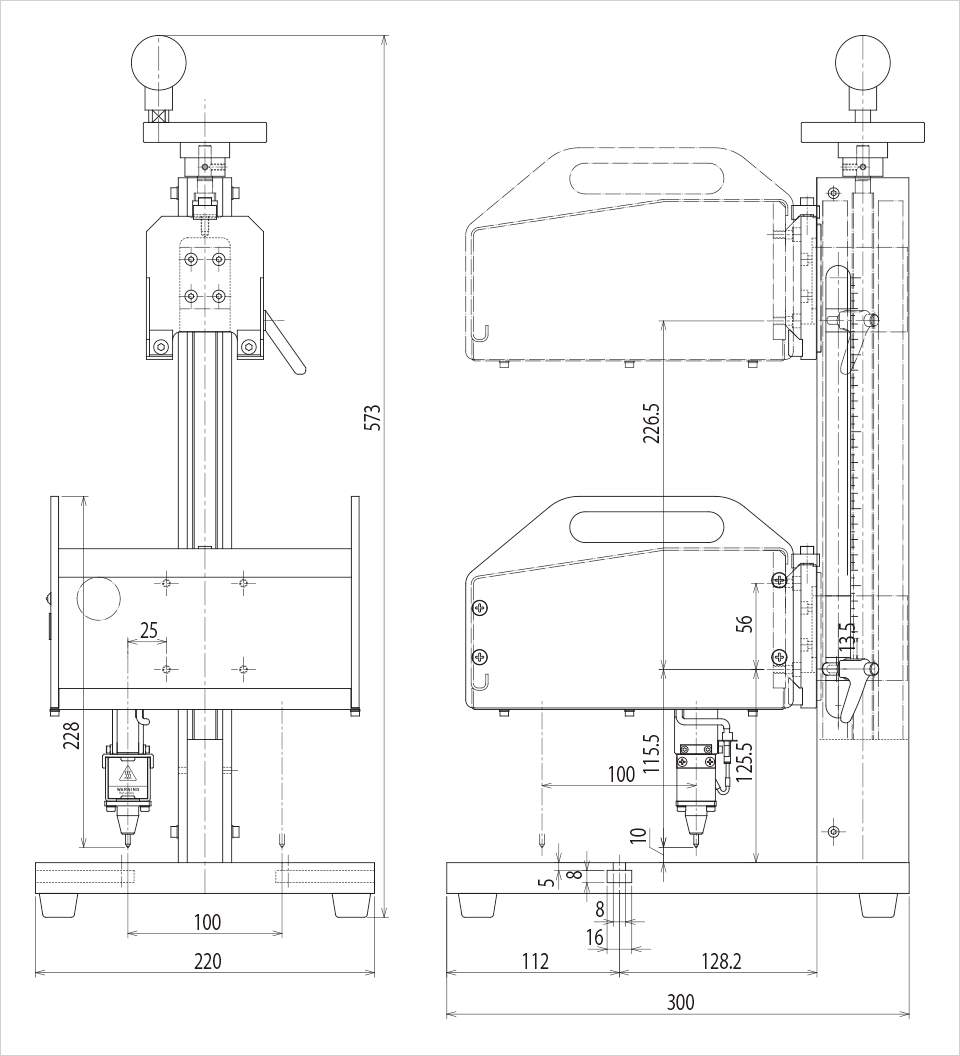

Tool and post dimensions |
220mm x 300mm x 573mm |
Tool and post weight |
7kg |
Material application |
Metal (HRC62), Plastics, Papers, Woods |
Marking area of X axis 100mm × Y axis 100mm.
Comes standard with a tool post stand. There are two t-slots in the stand base for mounting fixtures and jigs. The large stand option offers a more solid robust stand.

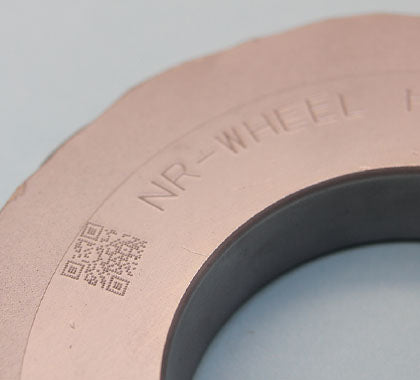

Ideal for part marking or plate marking.
The portable foot accessory allows the unit to become portable. We have had customers create their own custom foot for this unit, for special applications, portability and with rare earth magnets for hands-free operation.
Program from PC software (recommended) or mobile device app. See Markinbox Software for more information.
What is in the box:
- MB1010 Unit
- Normal Solenoid Head
- Stand
- MB2s WiFi controller
- 2m cable
- Power cord
Markinbox Accessories
-

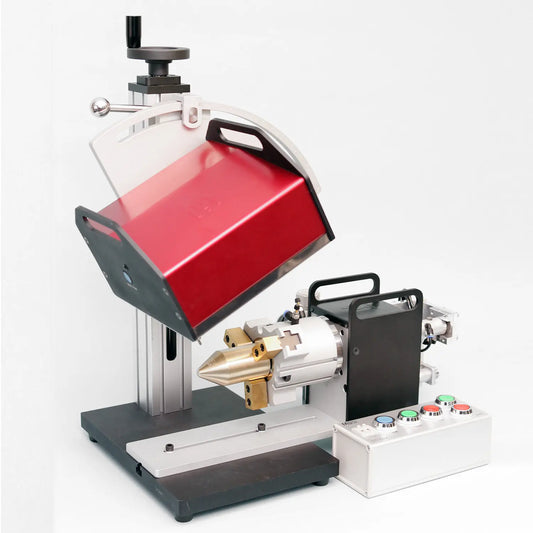

Angle Index
Translation missing: en.accessibility.sku -
Carbide Pin - 120° Tip angle, Extra Length
Translation missing: en.accessibility.sku -
Carbide Pin - 120° Tip angle, High Hardness
Translation missing: en.accessibility.sku -
Carbide Pin - 120° Tip angle, Standard Length
Translation missing: en.accessibility.sku -
Carbide Pin - 40° Tip angle, Extra Length
Translation missing: en.accessibility.sku -
Carbide Pin - 40° Tip angle, High Hardness
Translation missing: en.accessibility.sku -
Carbide Pin - 40° Tip angle, Standard Length
Translation missing: en.accessibility.sku -

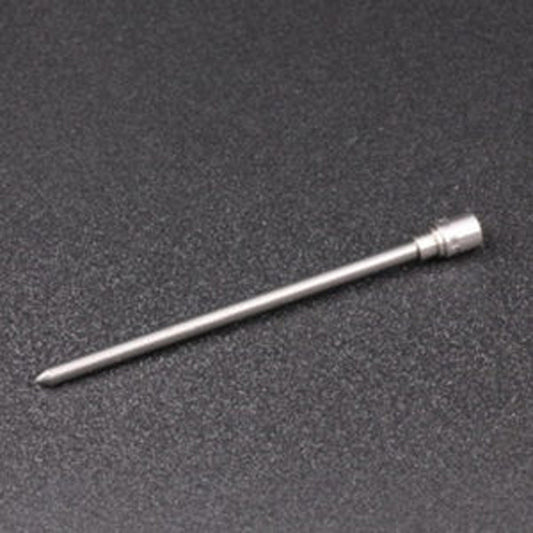

Carbide Pin - 60° Tip angle, Extra Length
Translation missing: en.accessibility.sku -
Carbide Pin - 60° Tip angle, High Hardness
Translation missing: en.accessibility.sku -

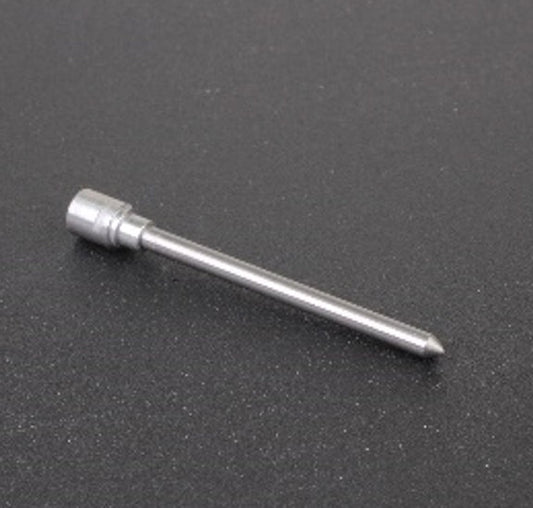

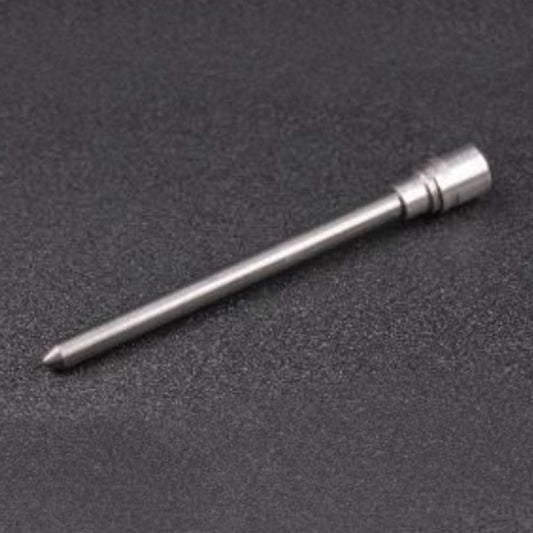

Carbide Pin - 60° Tip angle, Standard Length
Translation missing: en.accessibility.sku
Markinbox Parts
-
Socket Bush
Translation missing: en.accessibility.sku -
AC Adapter
Translation missing: en.accessibility.sku -
Pin Holder
Translation missing: en.accessibility.sku -
Pin Holder Assembly
Translation missing: en.accessibility.sku -
Solenoid Assembly
Translation missing: en.accessibility.sku -
Solenoid Block
Translation missing: en.accessibility.sku
More Information
Markinbox F.A.Q.
How long do pins last?
For most customer, marking everyday for 1-4 hours, typically 1-2 years of life. Normally the pin only needs a regrind to touch up the tip point.
Does it matter if I run the unit and the pin isn't hitting anyting?
YES! Do not do this! The pin should always be operated where it impacts a work piece. "Free Running" the pin can cause the pin head to break off - its carbide - super strong in compression but brittle to tension.
Software
Easy to use WYSIWYG operation.
Quickly create alphanumeric text, auto-incrementing serial numbers, and date stamps.
Mark DXF files, create logos, mark CSV data and create QR and data matrix codes.
QR and fonts
DXF
Shapes
CSV file marking
Power Source & Connectivity
Power Source: Electric, 240v AC
Just your standard power plug
Diagram:
