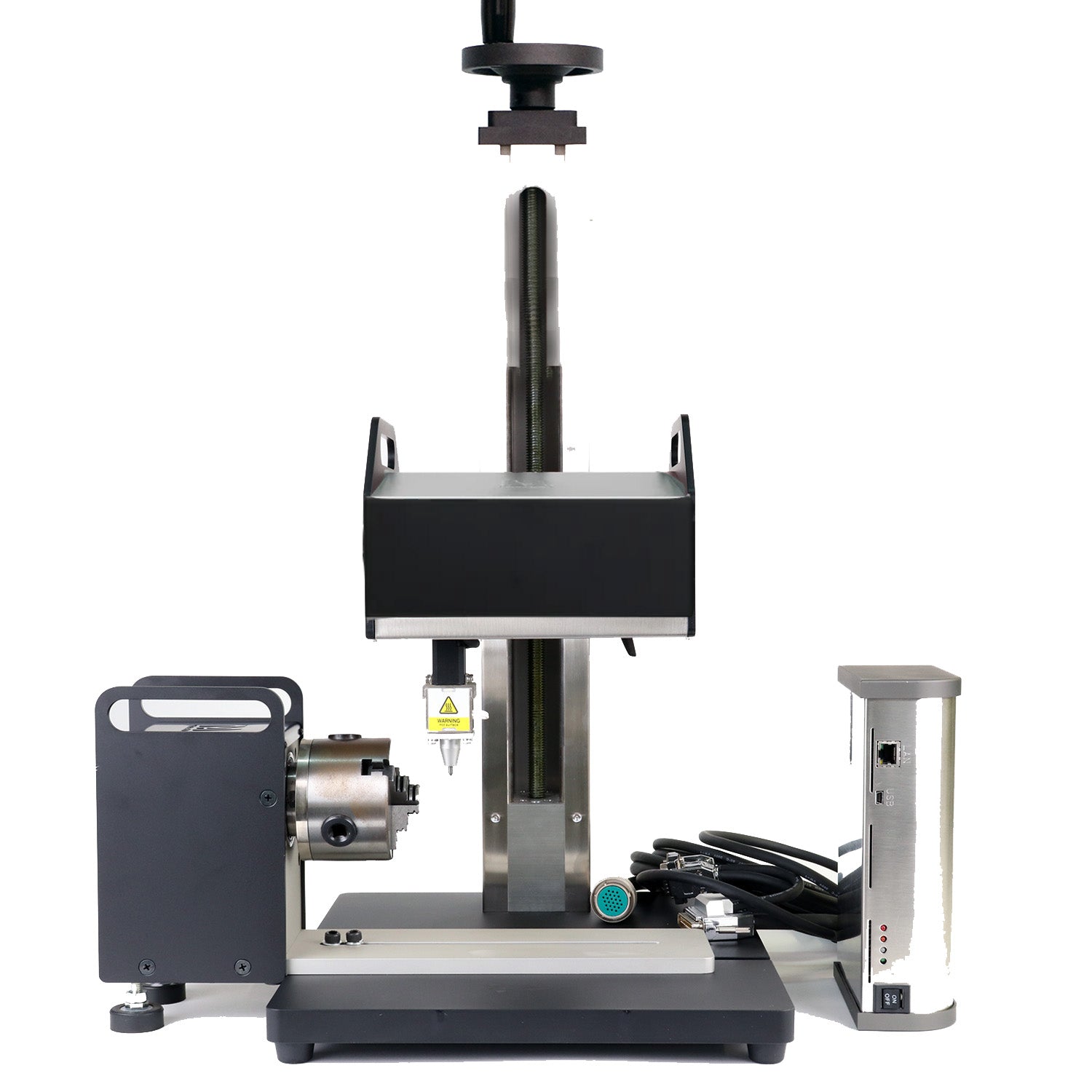

MB1010 with Rotary Device
MB1010 with Rotary Device
Translation missing: en.products.product.sku:MB2S10102MBKRD
Downloads Markinbox Full Catalogue MB1010 with Rotary Device Brochure
Specifications
Marking area |
X axis 100mm x Y axis 100mm |
Standard cable length | 2m |
Head dimensions | 200mm x 217.5mm x 228mm |
Head weight | 4.5kg |
Tool and post dimensions | 220mm x 300mm x 573mm |
Tool and post weight | 7kg |
Material application | Metal (HRC62), Plastics, Papers, Woods |
Marking area of X axis 100mm × Y axis 100mm.
This package comes with the rotary chuck and everything required to run it. The MB2s controller is upgraded with a chip to allow it to drive the rotary chuck in sync with the marking head. The cable is also upgraded with additional wires for communication between the chuck and rotary unit.
This package is recommended for marking cylindrical parts.
The marking head has a dovetail mount on the back and is suitable for mounting on custom mounting stands.
Program from PC software (recommended) or mobile device app. See Markinbox Software for more information.
What is in the box:
- MB1010 Unit
- Standard Solenoid Head
- Normal stand
- Rotary Chuck
- MB2S WiFi controller with upgraded chip for rotary unit
- 2m cable for rotary unit
- Power cord
Markinbox Accessories
-
Angle Index
Translation missing: en.accessibility.sku -
Carbide Pin - 120° Tip angle, Extra Length
Translation missing: en.accessibility.sku -
Carbide Pin - 120° Tip angle, High Hardness
Translation missing: en.accessibility.sku -
Carbide Pin - 120° Tip angle, Standard Length
Translation missing: en.accessibility.sku -
Carbide Pin - 40° Tip angle, Extra Length
Translation missing: en.accessibility.sku -
Carbide Pin - 40° Tip angle, High Hardness
Translation missing: en.accessibility.sku -
Carbide Pin - 40° Tip angle, Standard Length
Translation missing: en.accessibility.sku -
Carbide Pin - 60° Tip angle, Extra Length
Translation missing: en.accessibility.sku -
Carbide Pin - 60° Tip angle, High Hardness
Translation missing: en.accessibility.sku -
Carbide Pin - 60° Tip angle, Standard Length
Translation missing: en.accessibility.sku
Markinbox Parts
-
Socket Bush
Translation missing: en.accessibility.sku -
AC Adapter
Translation missing: en.accessibility.sku -
Pin Holder
Translation missing: en.accessibility.sku -
Pin Holder Assembly
Translation missing: en.accessibility.sku -
Solenoid Assembly
Translation missing: en.accessibility.sku -
Solenoid Block
Translation missing: en.accessibility.sku
More Information
Markinbox F.A.Q.
How long do pins last?
For most customer, marking everyday for 1-4 hours, typically 1-2 years of life. Normally the pin only needs a regrind to touch up the tip point.
Does it matter if I run the unit and the pin isn't hitting anyting?
YES! Do not do this! The pin should always be operated where it impacts a work piece. "Free Running" the pin can cause the pin head to break off - its carbide - super strong in compression but brittle to tension.
Software
Easy to use WYSIWYG operation.
Quickly create alphanumeric text, auto-incrementing serial numbers, and date stamps.
Mark DXF files, create logos, mark CSV data and create QR and data matrix codes.
QR and fonts
DXF
Shapes
CSV file marking
Power Source & Connectivity
Power Source: Electric, 240v AC
Just your standard power plug
