All Products > Markinbox > Units > MB8020

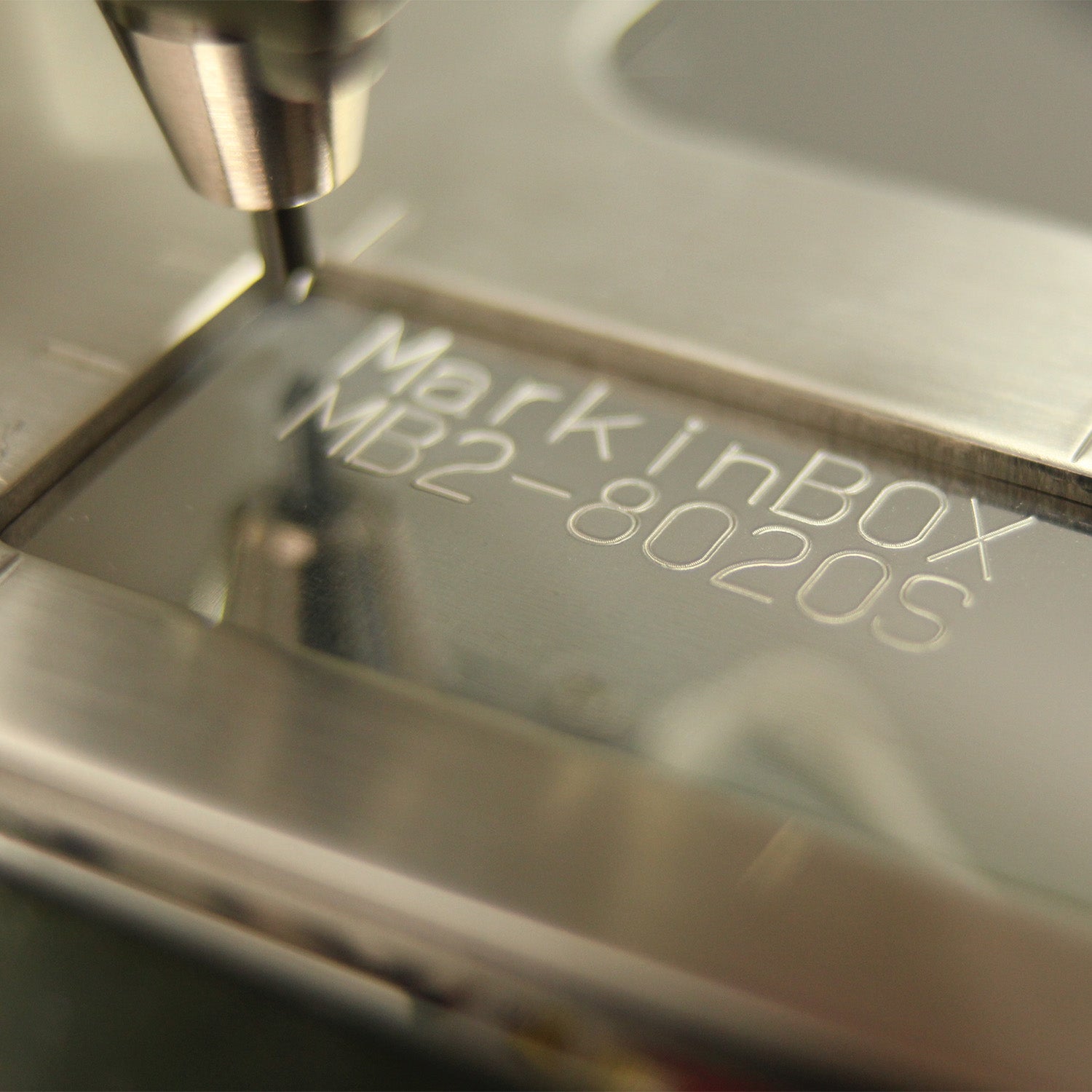

  • Markinbox MB8020 marking example
1 3

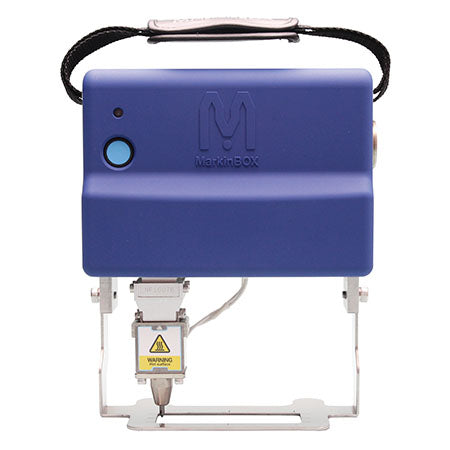

MB8020

MB8020

MB2S8020S3MBK

Marking Area: 80 W x 20 H

cloud_download Downloads

Markinbox Full Catalogue MB8020 Brochure

Specifications

Marking area

X axis 80mm x Y axis 20mm

Standard cable length

3m

Head dimensions

200mm x 217.5mm x 228mm

Head weight

2.1kg

Tool and post dimensions

220mm x 300mm x 573mm

Tool and post weight

7kg

Material application

Metal (HRC62), Plastics, Papers, Woods



Marking area of X axis 80mm × Y axis 20mm.

The MB8020 is our most popular Markinbox unit. It has a marking area that is adequate for most customers' requirements, reducing unnecessary marking area and keeping the unit cost down.

The unit is easy to place onto large jobs and also suitable for marking smaller parts. It is also suitable for marking cylinders.

We highly recommend the magnetic foot base in applications where the job surface is flat, as it keeps the unit 100% secure during marking, preventing movement (operator error) and/or allows for hands-free marking.

The marking head has four m5 screw lugs on the back suitable for mounting on custom mounting stands. Otherwise, we have ready-to-go tool post stands available.

Program from PC software (recommended) or mobile device app. See Markinbox Software for more information.

What is in the box:

  • MB8020 Unit
  • Standard Solenoid Head
  • MB2S WiFi controller
  • 3m cable
  • Power cord
View full details

Markinbox Accessories

View all

Markinbox Parts

More Information

Markinbox F.A.Q.

How long do pins last?

For most customer, marking everyday for 1-4 hours, typically 1-2 years of life. Normally the pin only needs a regrind to touch up the tip point.

Does it matter if I run the unit and the pin isn't hitting anyting?

YES! Do not do this! The pin should always be operated where it impacts a work piece. "Free Running" the pin can cause the pin head to break off - its carbide - super strong in compression but brittle to tension.

Software

Easy to use WYSIWYG operation.

Quickly create alphanumeric text, auto-incrementing serial numbers, and date stamps.

Mark DXF files, create logos, mark CSV data and create QR and data matrix codes.



QR and fonts



DXF



Shapes



CSV file marking

Power Source & Connectivity

Power Source: Electric, 240v AC

Just your standard power plug

Diagram:

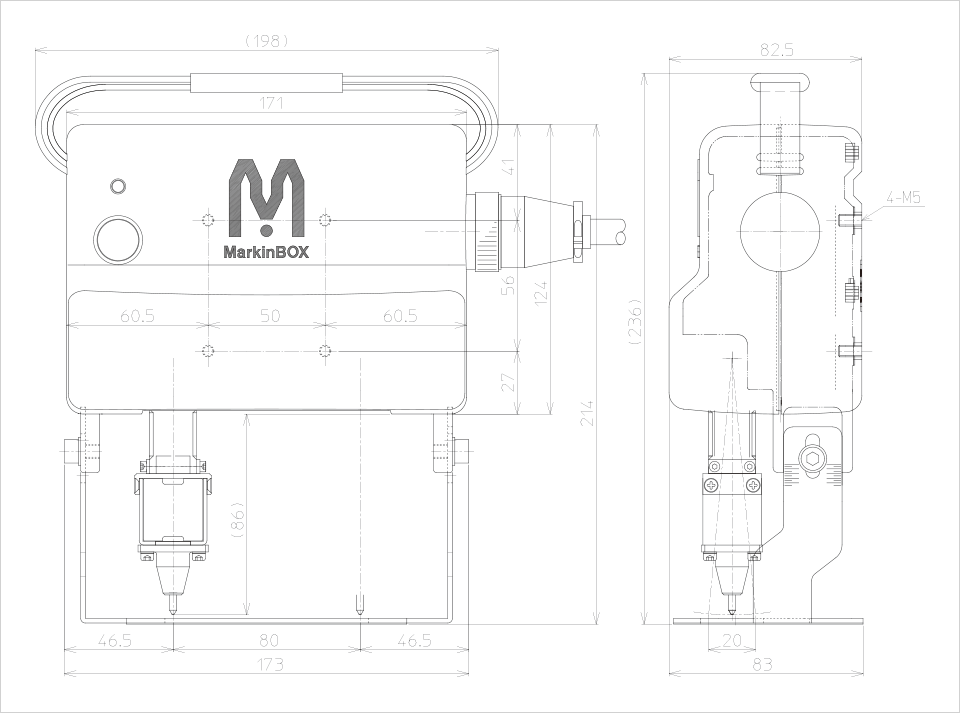

Unit Drawing

Pin Distance From Work Piece Table

Application Examples
