Carbide Pin - Low Stress Tip, Standard Length
Carbide Pin - Low Stress Tip, Standard Length
Translation missing: en.products.product.sku:COM14LS
Couldn't load pickup availability

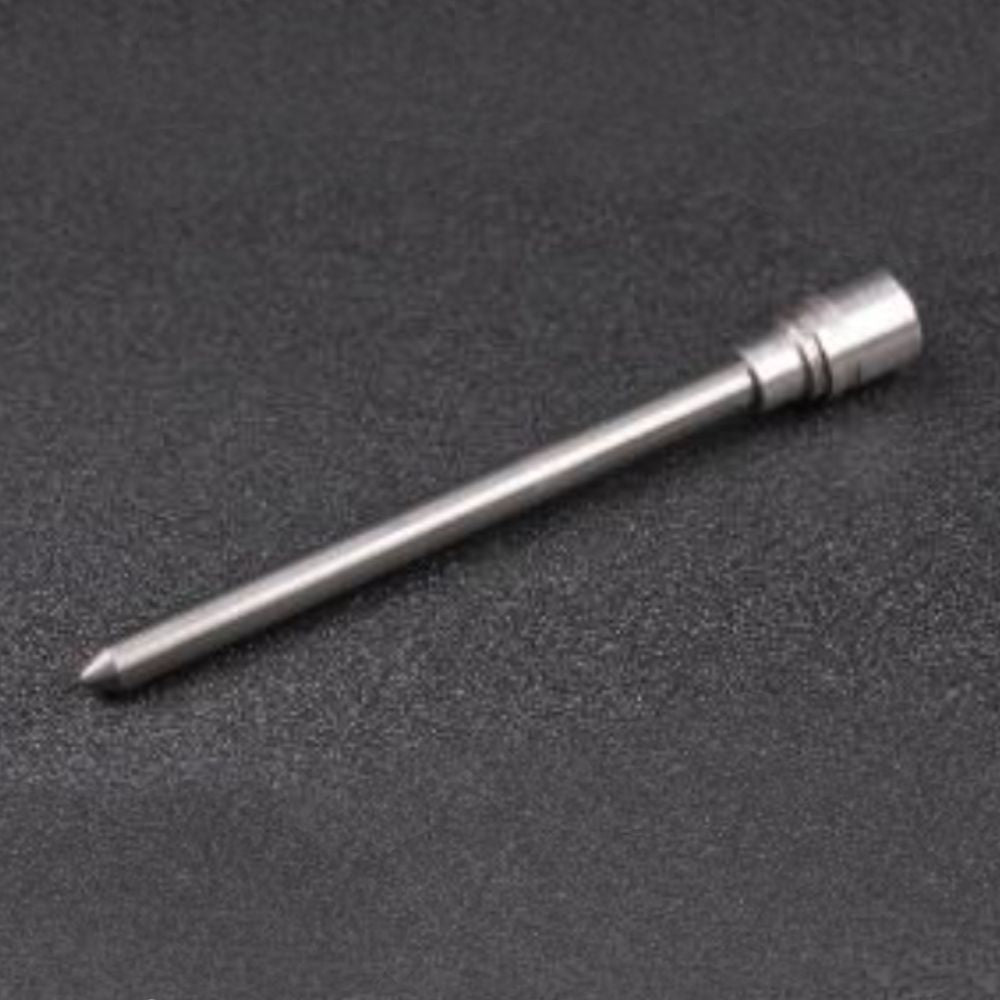

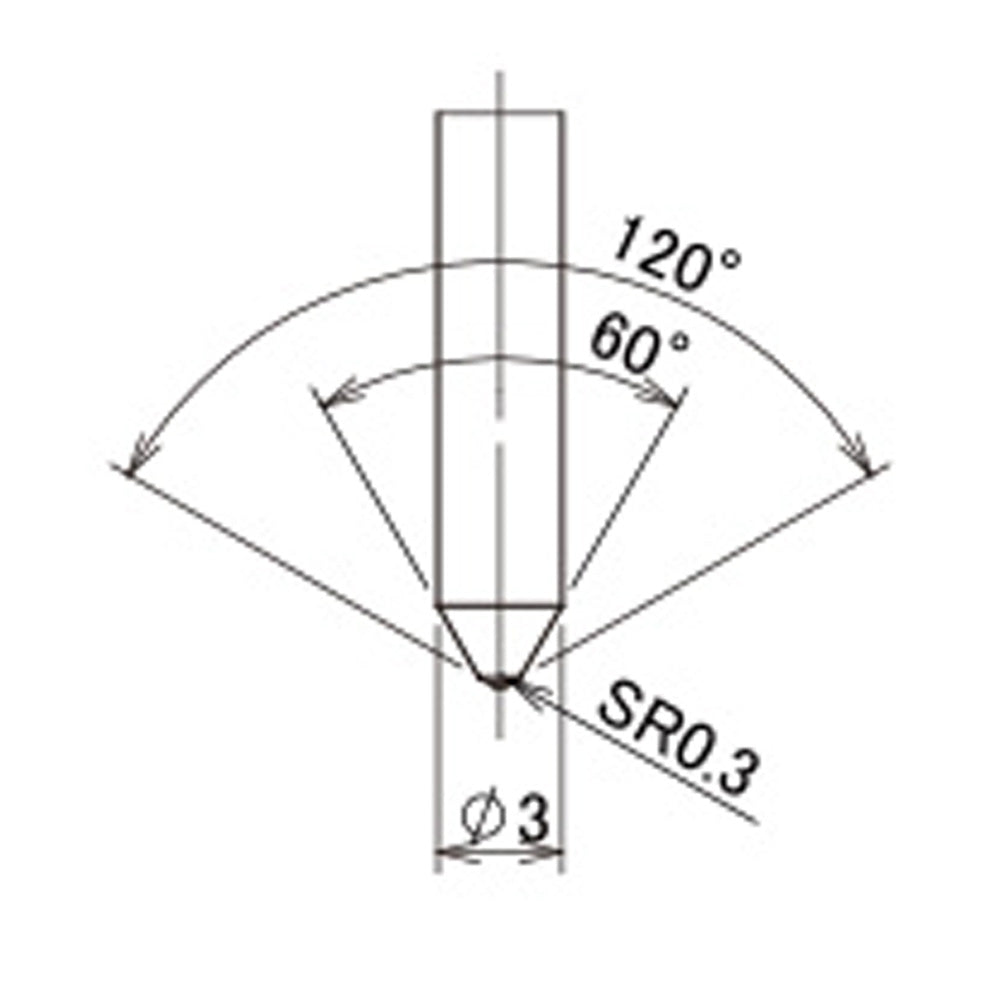

- Carbide stylus pin with a Low Stress Tip (SR0.3)

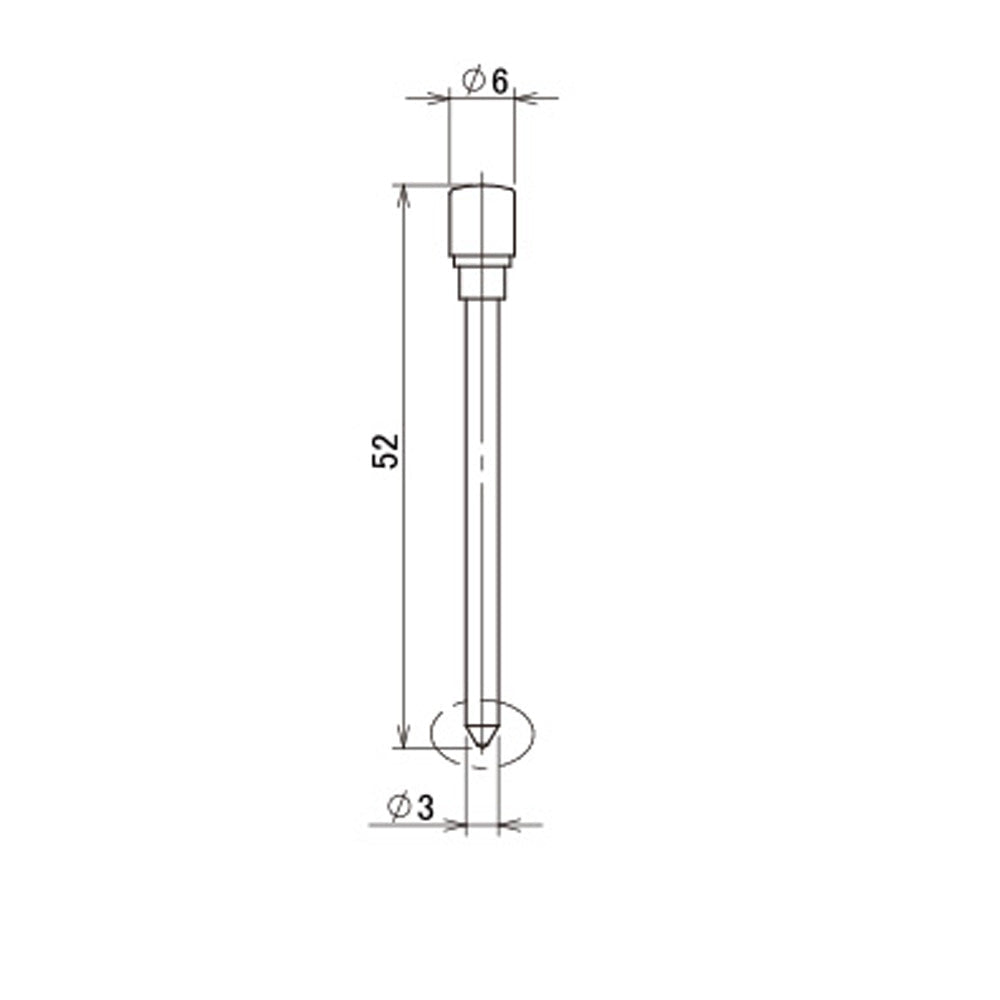

- Standard Length: 52mm
- Carbide hardness: HRA92
- Suitable for all metal surfaces up to 62HRC
This is the Low Stress tip, suitable for Aerospace applications.
A low stress tip is required in some aerospace marking applications.
You can regrind the tip or we can offer that service if you require, just get in touch.
![Carbide Pin - Low Stress Tip, Standard Length](http://markinbox.com.au/cdn/shop/products/pin_standard_new.jpg?v=1677050789&width=1445)
![Low Stress Tip diagram](http://markinbox.com.au/cdn/shop/products/pin_diagram_LS.jpg?v=1677050789&width=1445)
![Carbide pin standard length](http://markinbox.com.au/cdn/shop/products/pin_diagram_normal_67fffde4-1e42-4df1-a215-9600a3812f95.jpg?v=1677050789&width=1445)
