Carbide Pin - 60° Tip angle, Standard Length

Carbide Pin - 60° Tip angle, Standard Length

Translation missing: en.products.product.sku:COM14060

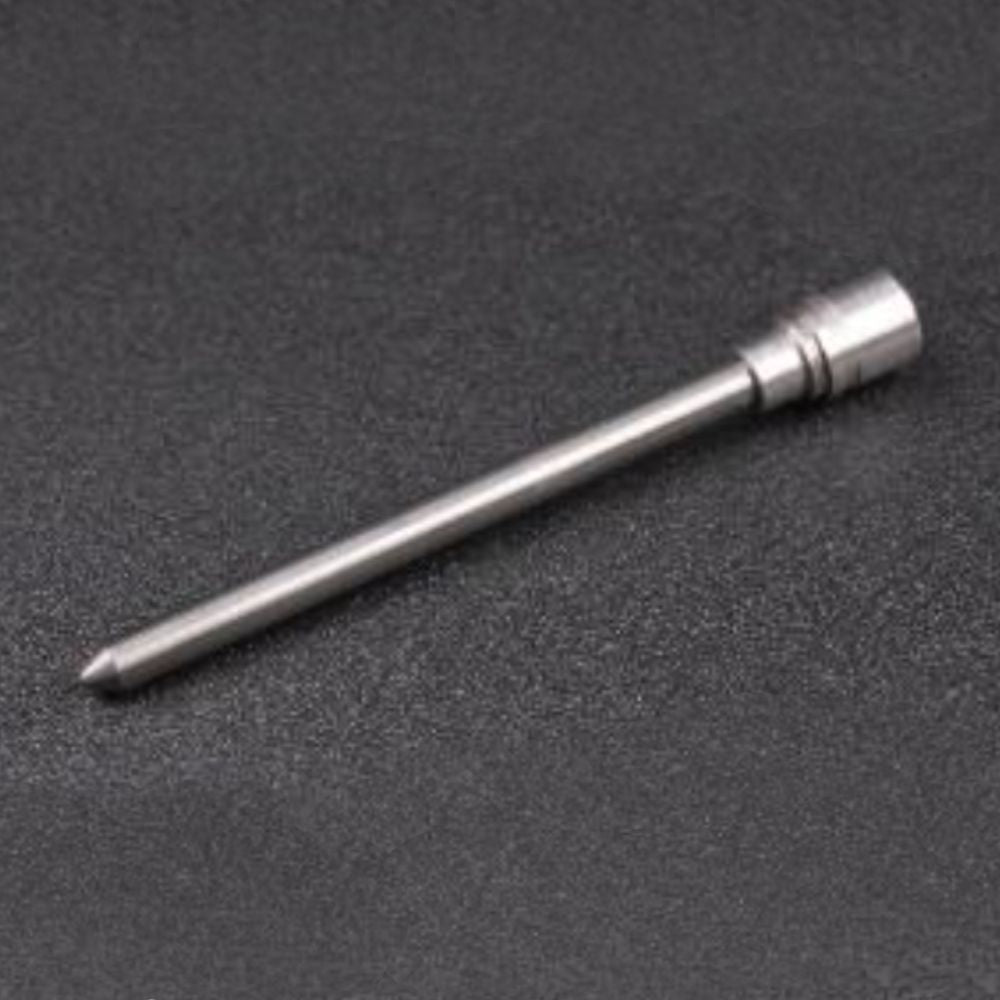

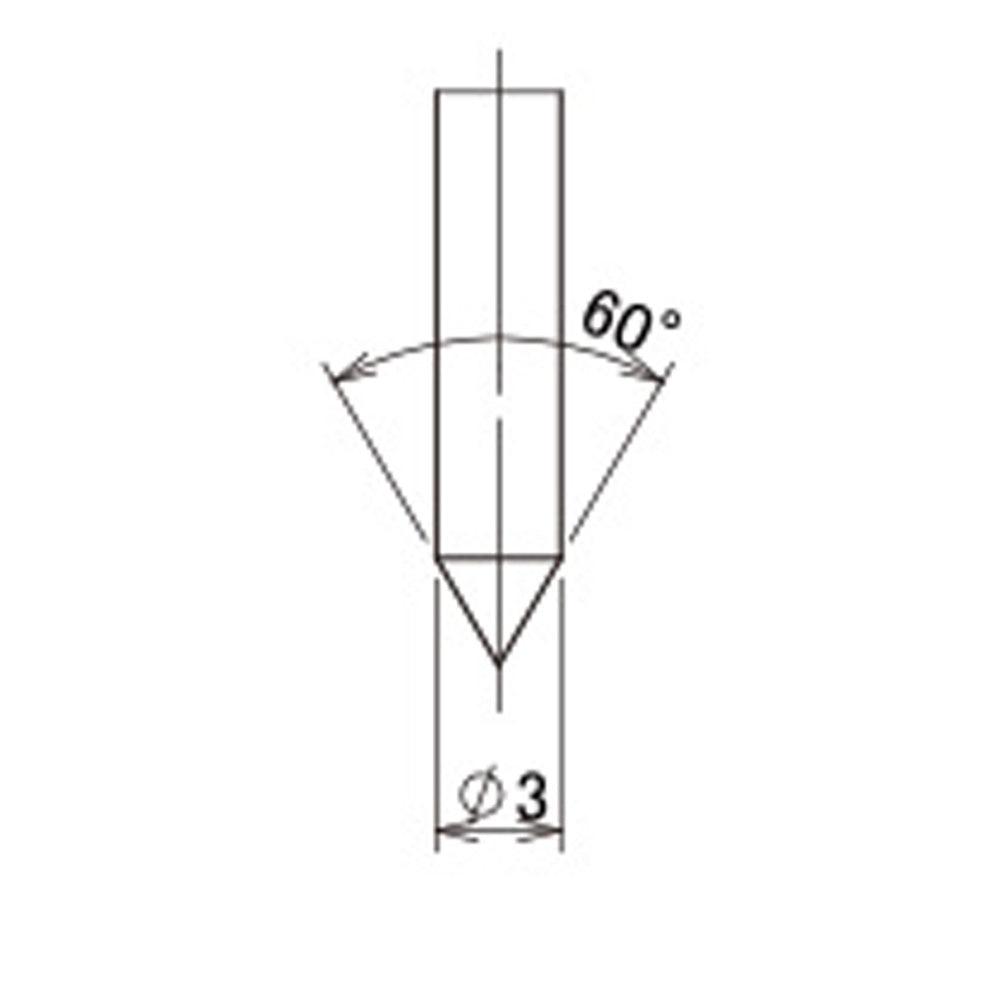

  • Carbide stylus pin with a 60° tip angle

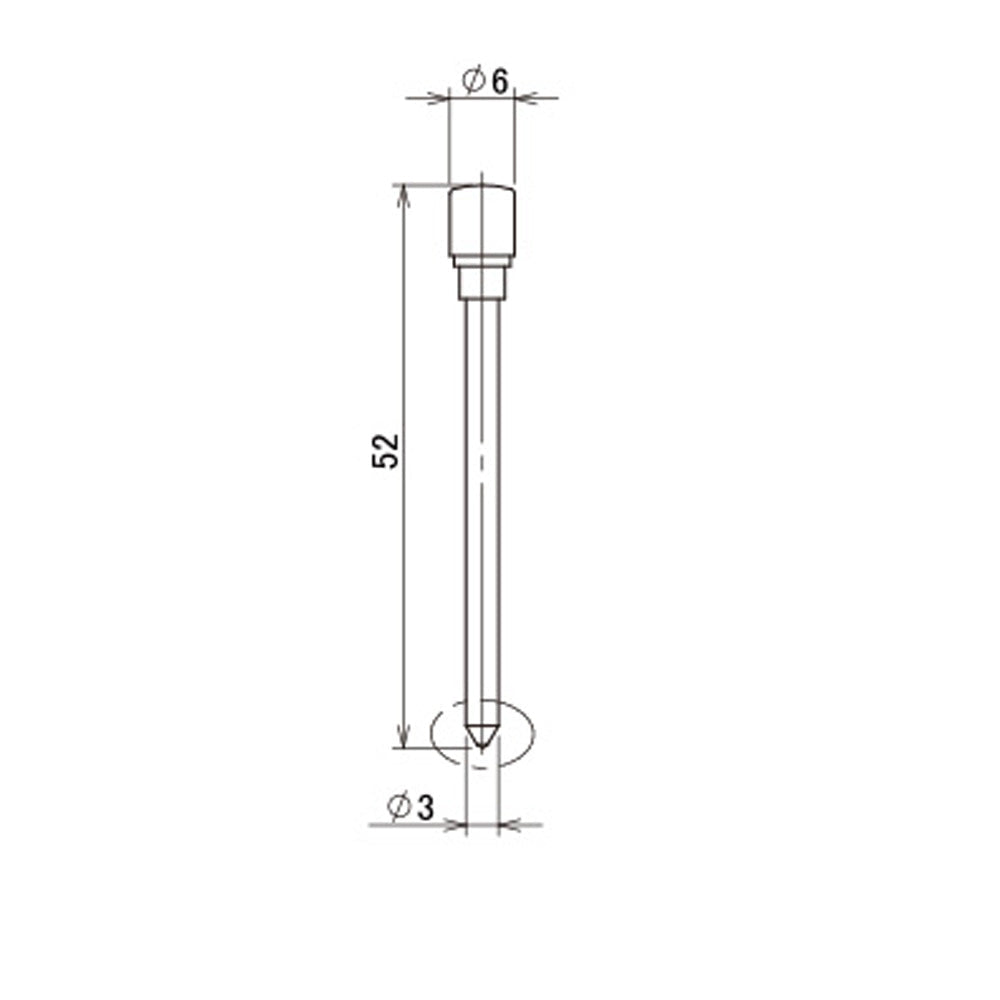

  • Standard Length: 72mm (standard is 52mm)
  • Carbide hardness: HRA92
  • Can mark metal surfaces up to 62HRC, Suitable for most Plastics

This pin angle is suitable for plastics. The deformation point of plastics is much higher than metal so a sharper tip angle allows for this to be overcome much more easily without having to increase the force, which can cause an overly wide mark.


You can regrind the tip or we can offer that service if you require, just get in touch.
